LMF-L Linear Bushing

Home>> Linear Bearings>>Linear Bearings >> LMF-L Linear Bushing

LMF-L Linear Bushing

LMF-L Linear Bushing

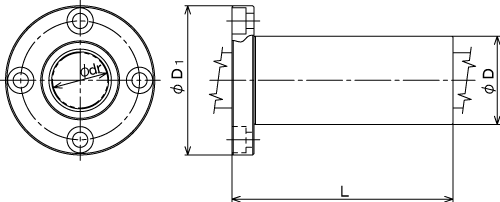

Drawing

Datasheet

Model No.				Main dimensions
	Inscribed bore diameter			Outer diameter		Length		Flange	diameter
	dr	Tolerance		D	Tolerance	L	Tolerance	D₁	Tolerance
		Precision	High		Precision/High
	mm	mm	mm	mm	mm	mm	mm	mm	mm
LMF 6L	6	—	—	12	0	35	0	28	0
					–0.013				–0.2
LMF 8L	8	—	—	15	0	45	0	32	0
					–0.013				–0.2
LMF 10L	10	—	—	19	0	55	0	39	0
					–0.016				–0.2
LMF 12L	12	—	—	21	0	57	0	42	0
					–0.016				–0.2
LMF 13L	13	—	—	23	0	61	0	43	0
					–0.016				–0.2
LMF 16L	16	—	—	28	0	70	0	48	0
					–0.016				–0.2
LMF 20L	20	—	—	32	0	80	0	54	0
					–0.019				–0.2
LMF 25L	25	—	—	40	0	112	0	62	0
					–0.019				–0.2
LMF 30L	30	—	—	45	0	123	0	74	0
					–0.019				–0.2
LMF 35L	35	—	—	52	0	135	0	82	0
					–0.022				–0.2
LMF 40L	40	—	—	60	0	154	0	96	0
					–0.022				–0.3
LMF 50L	50	—	—	80	0	192	0	116	0
					–0.022				–0.3
LMF 60L	60	—	—	90	0 -0.025	211	0 -0.4	134	0 -0.3
